PRODUCT

/ Oval

manufacturing and sale of cold-rolled and hot-rolled steel pipes/ tubes
sales of cold-rolled and hot-rolled steel coils
steel slitting services


pipes/ tubes

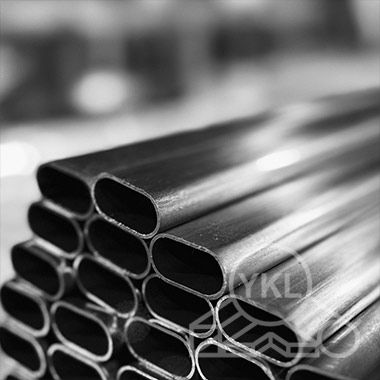

Oval

Material	Standard	Outer Diameter (mm)Least * Most	Thickness (mm)
Cold-Rolled	SPCC-1B SPCC-CQ1	10.020.0 ~ 20.040.0	0.70~1.40 0.70~2.30
Hot-Rolled	SPHC / SAE1008	15.030.0 ~ 20.040.0	1.50~3.20

Oval	CR thickness	HR thickness
12/25	0.7~1.2
15/30	0.8~2.0	1.5~2.0
16.5/34	0.8~2.0	1.5~2.0
20/40	0.8~1.6	1.5
25/50	0.9~1.6	1.5
20/60	0.9~1.2	1.5
